PCB Depaneling Machine , PCB Depaneling , Motorized PCB Depanel Machines

Intro:

PCB depaneling machine can separate PC and LED boards cleanly, without stressing the boards, circuits, or components. PCB v cut and straight knfe pcb d is a motorized depaneling machine for V-scored PCB. It is very easy to operate. Operator just need to put PCB V-cut on the lower linear blade, then press foot switch, uppder blade will moves from one side to another side to separate the PCB.

Suitable:

PCB Depaneling Machine , PCB Depaneling , Motorized PCB Depanel Machines

It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.

Available PCB thickness: from 0.2mm to 3.2 mm

Available V-cut thickness: from 0.2mm to 2.0mm

Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.

Parameter

Features:

1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control upper circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

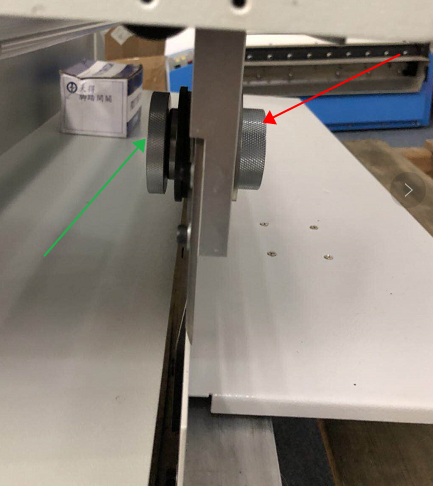

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.

PCB depaneling machine will be packed by wooden case

Welcome to contact us fore more information about PCB Depaneling Machine , PCB Depaneling , Motorized PCB Depanel Machines
