    RS-10T/20T Hydraulic Terminal Press Machine

    Ask Lasest Price
    Brand Name : RKESN
    Model Number : RS-10T/20T
    • Product Details
    • Company Profile

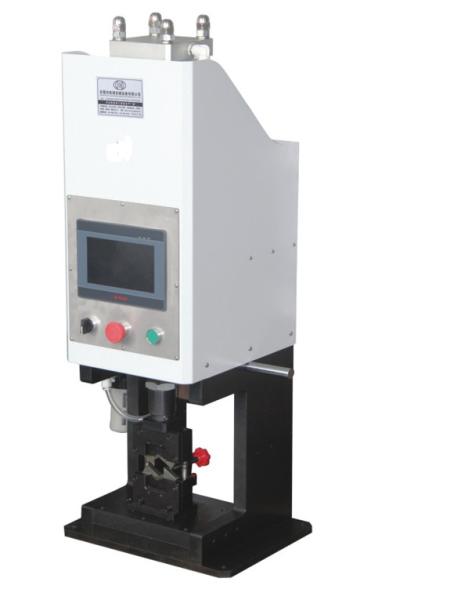

    RS-10T/20T Hydraulic Terminal Press Machine

    Intro:

    The machine is suitable for designed for new energy, flexible cables, charging pile cables, high and low voltage distribution cabinets, automotive cables, large square cables and other industries research and development, lightweight, stable hydraulic system,


    Suitable:

    RS-10T is for 2.5-95sqmm big tubular terminals.

    RS-20T is for 2.5-180sqmm terminals.

    It can press hexagon shape.


    Specification:

    ModelRS-10T hydraulic terminal press machineRS-20T hydraulic terminal press machine
    Power Supply220V220V
    Display mode7 inch touch screen7 inch touch screen
    Functionlarge square terminal crimping hexagon / B typelarge square terminal crimping hexagon / B type
    Effective stroke40MM40MM
    Crimp Range2.5-95sqmm2.5-180sqmm (need to replace the mold)
    Control Modeoil, electricity, gasoil, electricity, gas
    Suitable moldHexagonal mould, quadrilateral mould, upper and lower punching mould
    Size450 * 450 * 1050mm1050mm 550 * 550 * 1250mm
    Weight140KG220KG
    Capacity600-1200PCS / H (according to manual proficiency Varies)
    Start ModeManual/Foot pedalManual/Foot pedal

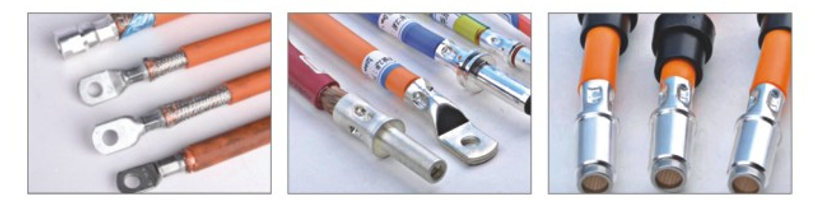

    Terminal Press Samples
