RS-70P Belt Feeding 70sqmm Cables Cutting And Stripping Machine

  • Product Details
  • Company Profile

RS-70P Belt Feeding 70sqmm Cables Cutting And Stripping Machine

Automatic big cable cutting and stripping machine


Youtube video: https://youtu.be/OHsEsAOx6V4


Intro:


RS-70 is micro-computer type wire cutting and stripping machine. Parameters can be set by pressing buttons. LCD will show all parameters. Operator can set cut length, quantity, front and rear strip length, etc.

8 Wheels roller driving mode, for big cables

  • English language display
  • 220V/110V 50HZ/60HZ power supply
  • For 6-22MM OD power cable,PVC,etc

Suitable:


1. Fast speed and multi-functional wire cutting and stripping machine

2.Suitable for round muti-core cable within 22MM OD. Or electric wire within 70 sqmm.

3. Cut only, or cut and strip at same time.

4. Programmable for setting parameters. Easy operation.


Specification:

ModelRS-70 Cable Cutting Stripping MachineRS-70P Cable Cutting Stripping Machine
Power Supply220V/110V 50HZ/60HZ220V/110V 50HZ/60HZ
FunctionCut wire, strip one end, strip both endsCut wire, strip one end, strip both ends
Available wireSuitable for electric wire, or multi-core cables
Cut length0.1-99999.9MM0.1-99999.9MM
Strip lengthFront end 1-200MM, rear end 0.1-90MMFront end:1-250mm, rear: 1-150mm
Cable size6-70sqmm6-70sqmm
Cutter controlStepping MotorServo Motor
Drive ModeEight-wheel independent driveEight-wheel independent drive
FunctionAuto wire in, auto wire out, timing startAuto wire in, auto wire out, timing start
Speed1000-1500pcs/H1000-1500pcs/H
Weight105KG105KG
SizeL900xH350XW530MML1030xH330xW530MM

Feature:


1. This machine is mainly aimed at the wires of the automobile industry, sensor industry, power industry, photovoltaic industry, electric control cabinet and battery box. The whole coil of wire can be stripped at the required length and peeled at both ends and the middle peeling automatically without hurting. The wire feeding accuracy of the sheath and the conductor and the belt greatly improves the efficiency;

2. This machine supports a variety of working modes, such as long wire, short wire, sheathed wire and multi-segment leather. One machine can meet the requirements of multiple wires;

3. Display mode: touch screen display interface, which can be switched between Chinese and English;

4. This machine adopts PLC control system to send pulses to improve the precision of cutting line; 5. Operation mode: semi-automatic manual operation of length measurement and cutting of multi-layer residual Skin, leftover skin in the middle, easy to operate

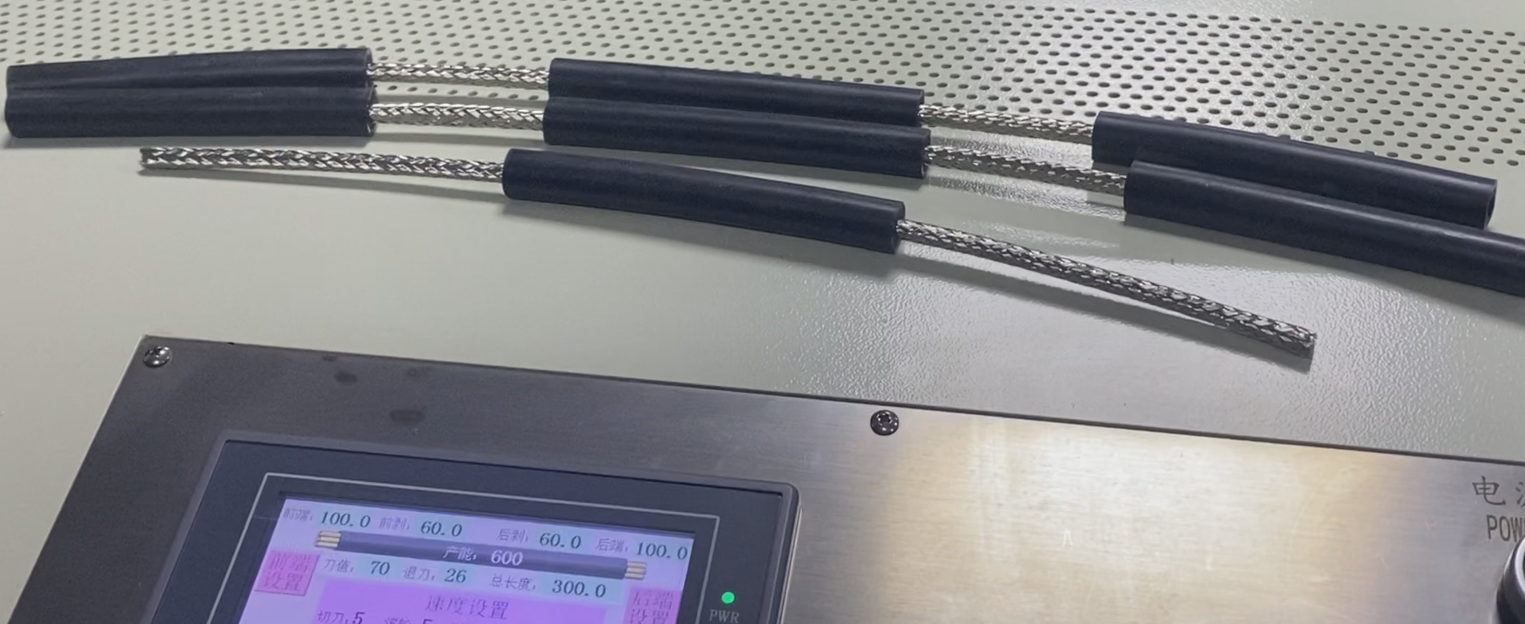

Cable Stripping Samples


Machine video:
