    Automatic Tin Wire Soldering Machine Auto Feeding Tin Wires

    Automatic Tin Wire Soldering Machine Auto Feeding Tin Wires


    Intro:

    YS-HX331 is a 4 axis automatic soldering machine. It works for wide range product welding, Such as PCB board plug-in welding, Wire welding, Hardware component welding ,etc.


    Specificaiton:


    Basic parametersSpecification&ModelYS-HX331
    Outside dimensions671mm×551mm×612mm
    Weight63Kg
    Using enviromentPower sourceAC 220V/50Hz
    AirClean 0.4~0.6kpa
    Out connection tube diameter8mm
    Working environment0-40℃ Humidity 20-90% (no condensation)
    Allow minimum desktop size600mm×500mm
    Temperature Control SystemHeatingvortex 200W/300W
    Range of temperature180-450℃
    Number of irons1
    Motion SystemNumber of axes5
    Drive systemStepper motor, synchronous belt
    Workpiece sizeX-axis300
    Y-axis300
    Z-axis100
    U-axis360°
    Maximum speedX/Y-axis500mm/s
    Z-axis250mm/s
    Repeatability accuracyX/Y/Z-axis±0.02mm
    Maximum weight10Kg
    Program ModeTeaching formatOffline/Online
    LanguageChinese/English
    Number of programs9999
    Welding parameter rangeUse tin wire range (diameter)0.6mm--1.5mm
    Single point welding time (related to the size of the solder joint)0.2s--100s

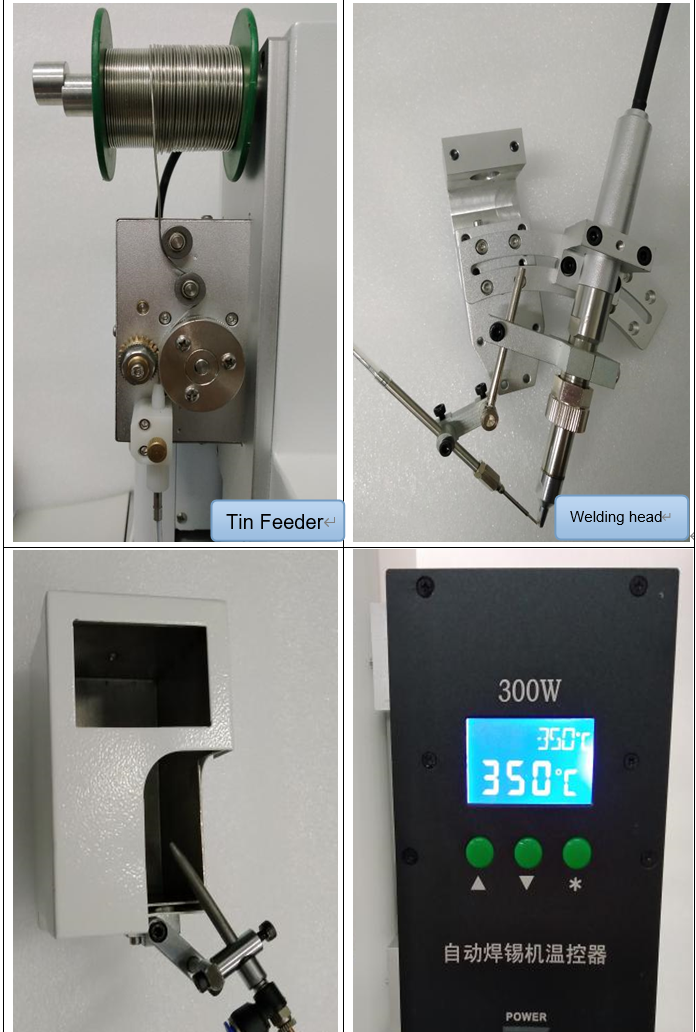

    Auto soldering machine details
