    380V Components PCB Lead Cutting Machine High Efficiency Low Noise 77x96x107 CM

    Ask Lasest Price
    Brand Name : RKENS
    Model Number : RS-911A
    Price : negotiable
    Delivery Time : 5-7 days
    Payment Terms : TT
    Supply Ability : 300sets/month
    • Product Details
    • Company Profile

    380V Components PCB Lead Cutting Machine High Efficiency Low Noise 77x96x107 CM

    Electronic components PCB Lead Cutting Machine , PCB Extra Legs Cutter Machine

    Intro:


    The Automatic PCB lead cutter machine is mainly used for cutting the extra pins of the components after soldering,this machine is assemblyed by precision manufacturing parts. The blade rotate fast and stability , at the same time it's very low noise and high efficiency.

    Double rail travel can be adjustable Synchronize,cutting length is easily also adjustable.


    Suitable:

    To use the automatic PCB lead cutting machine, pcb should meet below requirement.


    1. The pcb size should be within 400x250MM.

    2. The PCB board side should have at least 2MM distance from components.

    3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.


    Specification:

    NameElectronic components PCB Lead Cutting Machine , PCB Extra Legs Cutter Machine
    ModelRS-911A
    Power Supply380V AC50HZ/60HZ
    Shortest cut length1.5MM Cut length is adjustable
    Available PCB sizeMax 400x250MM
    Blade type200MM Dia, And 250MM Dia for option
    Efficiency

    4500 RPM

    Feature:


    1, Automatic input and output the PCB, cutting the PCB lead after the welding.

    2, High stability, it can connect with the automatic soldering machine or AI machine.

    3, Applies to the finger type slid to fasten the PCB board.

    4, Finger slid change easy and economic.

    5, With the prevent bending device, to overcome the bending PCB in welding.

    6, Input speed can be adjusted, max. speed is 3m/min.

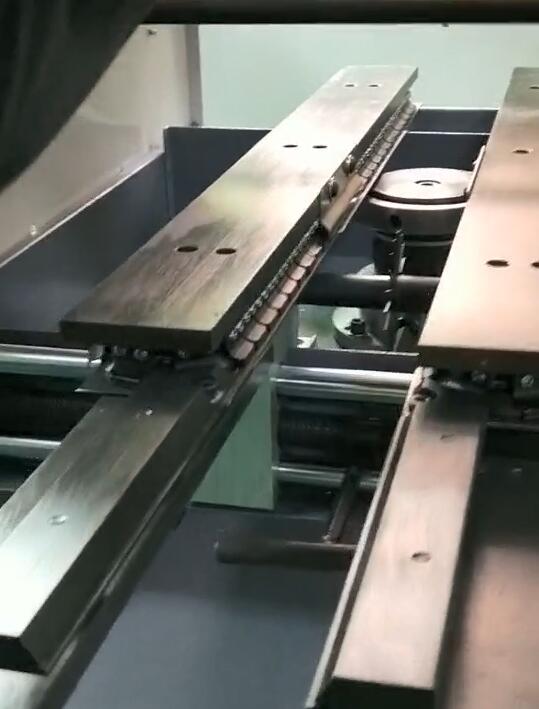

    Pictures of Electronic components PCB Lead Cutting Machine , PCB Extra Legs Cutter Machine
