    Liquid Resins Automatic Glue Dispenser Machine Programmable 300x300x60 Mm

    Ask Lasest Price
    Brand Name : RKENS
    Model Number : YS-D331-X
    Price : negotiable
    Delivery Time : 5-7 days
    Payment Terms : TT
    Supply Ability : 300sets/month
    • Product Details
    • Company Profile

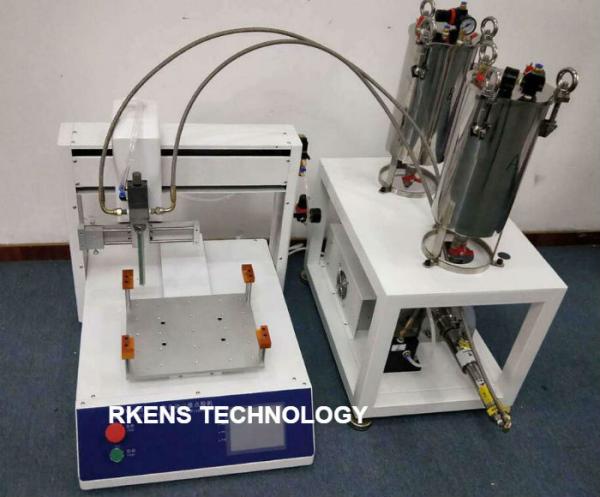

    Liquid Resins Automatic Glue Dispenser Machine Programmable 300x300x60 Mm

    Automatic Epoxy Dispensing Machine , Mixing and Dispensing Equipment for Liquid Resins

    Intro:


    This machine is specially designed for 2 components glue dispensing. It adopts precise gear metering pump and screw pump measuring, pump and mix glue according to a specified radio. Then dispense liquid on the surface of products or inside products by coating or potting , to it seal, fix and waterproof.

    Can mix components automatically, then dispense glue. Fast speed and high efficiency.


    Suitable:

    • Two components AB glue
    • 3- axis glue dispensing movement(Optional 4 axis)
    • Can make point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage,etc
    • Working platform be customized accroding to customer's product size
    • Programmable, LCD touch panel to set glue quantity, speed, etc

    Technical Parameters:

    Working platform can be customized as per products size.

    Model numberYS-D331-AB
    Name

    Automatic Epoxy Dispensing Machine , Mixing and Dispensing Equipment for Liquid Resins

    Working area(X/Y/Z area)300*300*60
    Max speed500mm/s
    Resolution0.01mm
    Repeatability+/-0.05mm
    Air source4-6KG
    Glue exudation controlA,B glue mix automatically
    Dispensing graphsdot,line,circle,and arc. One time drop or continuously dispensing
    Display5.7' LCD display
    Control systemprofessional 3 axis motor control system
    Power220V/50HZ 300W
    Import modeteaching or file import,dxf,PLT form.etc.
    Working enviromentTemperature:5-40 degree. Humidity:20-90%RH
    Size671*551*612
    Weight60KG


    Features:

    1.English touch panel to set parameters, easy operation.
    2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
    3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
    4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.
    5. Precise stepper motor, numerical control available
    6.Apply 3-axis robot to control the dispensing position to ensure high precision of glue dispensing
    7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
    8.Have air clean device,can gurrantee the material clean and dry.
    9. CAD document can be imported to simplify the operation

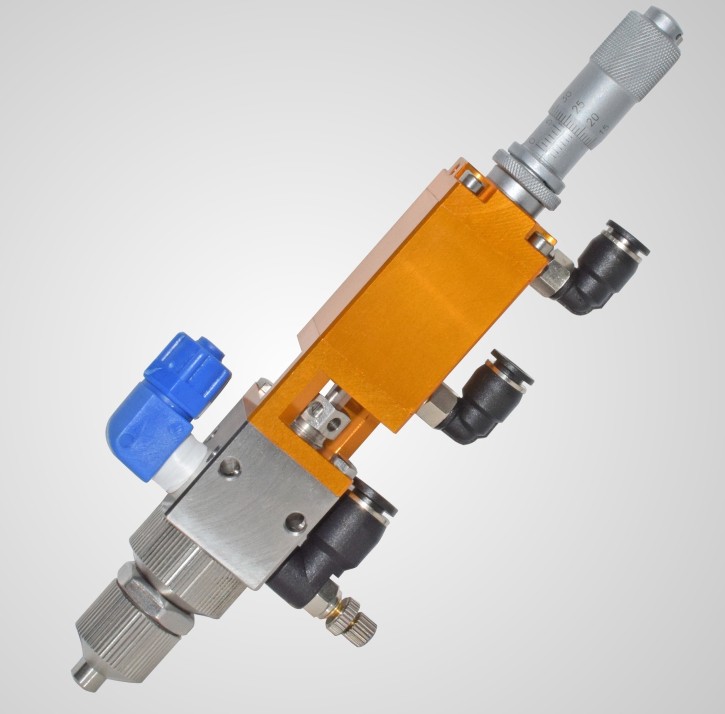

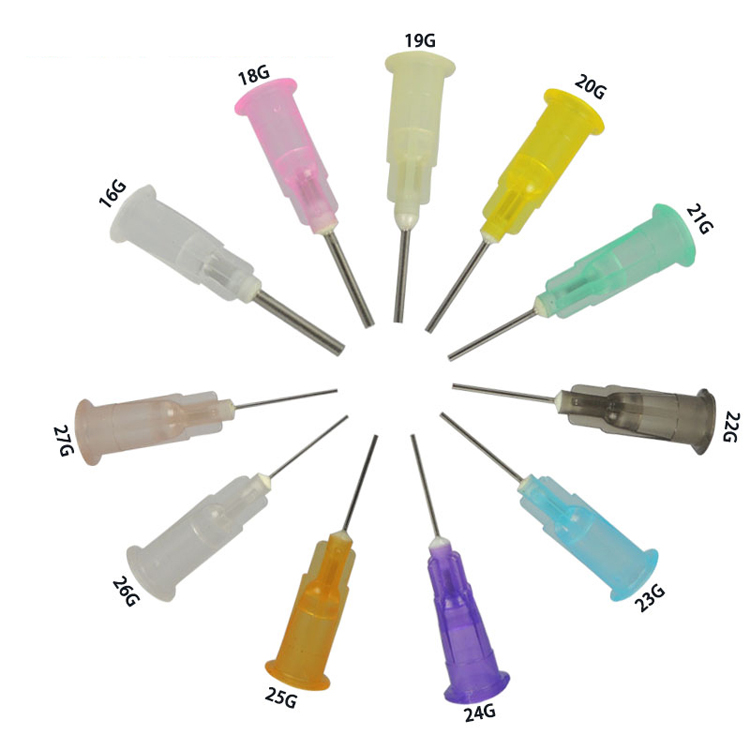

    Parts Of Automatic Epoxy Dispensing Machine , Mixing and Dispensing Equipment for Liquid Resins
