    30W Automatic Screw Feeder Driver Electrolytic Nickel Plating Screw Surface

    Automatic Air Blowing Screws Feeder Screwdriver Machine With Z Axis

    Intro:


    RS-L601 is an Automatic Air Blowing Screws Feeder Screwdriver Machine With Z Axis , comparing trantional handheld screwdriver machine, it can save operator's hands. With Z axis, operator does not need to hold the screwdriver. The machine will automatic feeding screws to screwdriver, then press foot switch, screwdriver will come down for tightening screws into product.


    Suitable:

    This screwdriver machine with feeder is suitable for M2 to M6 screws. And screw length should be at least 1.3 times of screw head diameter to make sure good feeding.

    Note: Screws should have screw head.


    1. Screwdriver machine works for: M2-M6.

    2. Available Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.

    3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

    4. Screw materials: iron, copper, stainless steel, etc.

    5. Materials of products to be screwed: plastic, iron, aluminum, etc.


    Parameters:


    ModelRS-L601
    NameAutomatic Air Blowing Screws Feeder Screwdriver Machine With Z Axis
    Applicable screwsM1-M6 screw length within 50mm
    Screw lead-in typeAir blowing
    Screw pocket volumeM2 x6 5000pcs
    Screw feeding speed0.5s/pcs
    Efficiency50-70pcs/min depend on screw length
    Suittable screw headSlotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc
    Air pressure2-3KGF/cm'
    Convey distance1-4 Meters
    Voltage220V/110v 50/60HZ
    Power30W
    Feeding machine sizeL370*W250*H190mm
    Warranty1 year for unit machine,3 years for mainboard
    CertificationCE
    Weight35kg

    Features:


    1. The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe

    2. Operating platform. Use pedal to control electric screwdriver of up and down.

    3. Electric screwdriver tightens the screw into product automatically.

    4. Easy to use. Operator only needs to put product on platform by hand. And then step on foot switch. Machine will tighten screw automatically. Then take out the finished product. And repeat this operation.

    5. Save time time for moving hand, fetching screws, moving screws, positioning screws, etc

    6. No need to fetch screws by hand, thus won’t cause the secondary pollution of screws by stain or sweat. Screws are not easy to rust.


    Advantages Comparing with traditional handheld screwdriver machine


    1. No need holding screwdriver by hand. It reduces the labor intensity

    2. No need positioning screw hole by hand. It saves working time better. Only need the jig to position screws.

    3. Scope of application increased. RS-L601/602 desktop screwdriver machine apply to deep screw hole, big and heavy screws.

    4. More favorable.

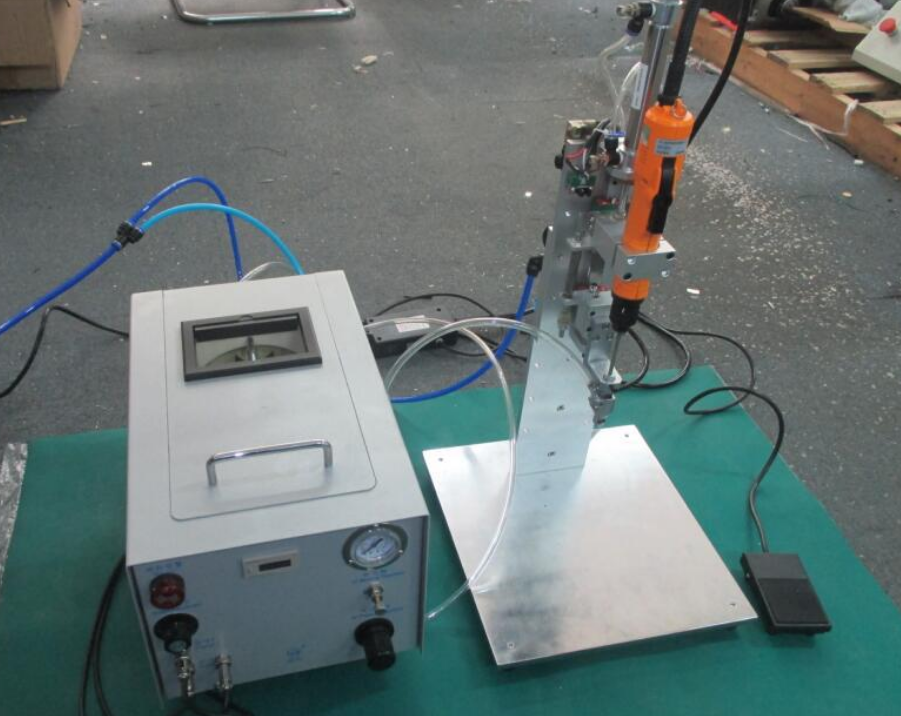

    Pictures of Automatic Air Blowing Screws Feeder Screwdriver Machine With Z Axis
